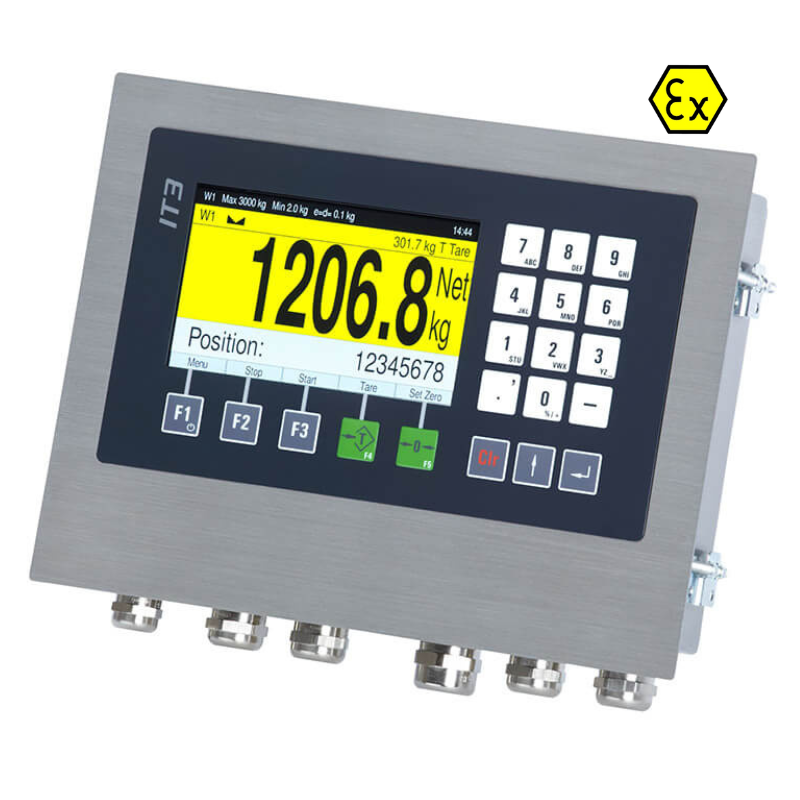

SysTec IT3 Ex2/22, for installation in Hazardous Area Zones 2 and 22
- Available as a wall-mount/desk-top unit or as panel-mount version for installation in a switch cabinet.
- The powerful modular hardware and the proven standard application programs enable the universal use for various industrial scales.
- W&M approved for use as non-automatic weighing instrument NAWI / AGFI
- Ease of operation: plain-text multilingual operator prompting, bright 5″ color display for weight, operator dialogs and calibration
- Robust: stainless steel housing (ingress protection: IP65), all cables inserted into the housing through tight cable glands, suitable for harsh environmental conditions and high hygienic requirements, such as in chemical, pharmaceutical and food operations
- Various designs: for wall-mount/desk-top and panel-mount installation
- Simple integration into PC networks or fieldbus systems
- Fields of application:
- Truck scales
- Counting scales
- Checkweighers
- Simple filling applications
- W&M approved weighing terminal in the PC network
- Fieldbus weighing terminal for weighing and batching
- Weighing indicator in hazardous area (ATEX; zone 2 and 22)
Standard Version:
Weighing Application: Panatronik
