Name: SysTec IT4000 Ex2/22 - Weighbridge Indicator - SysTec Indonesia
SKU: P-IT4000EX222
Availability: InStock

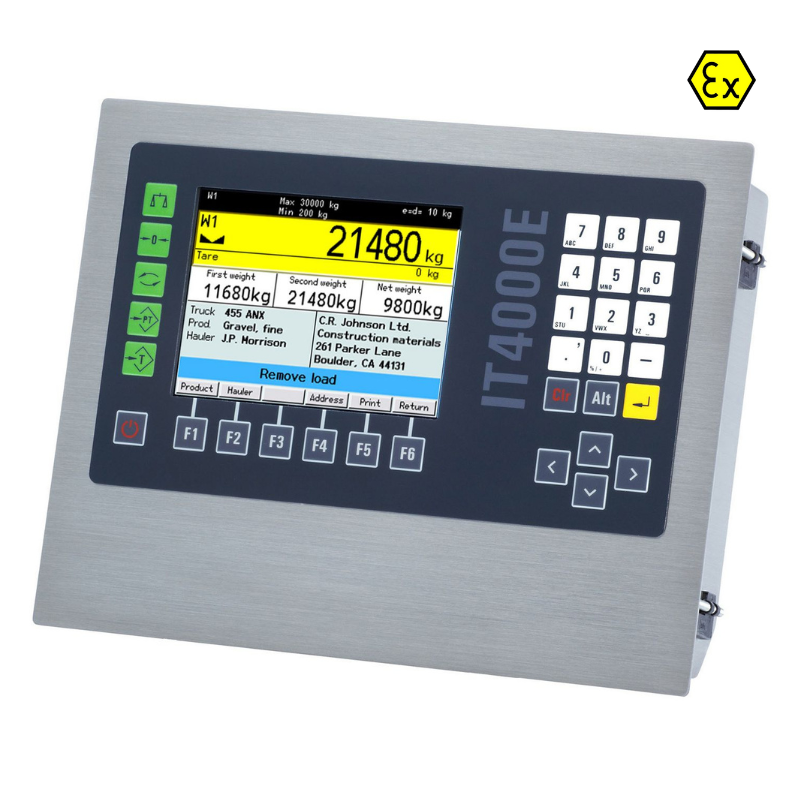

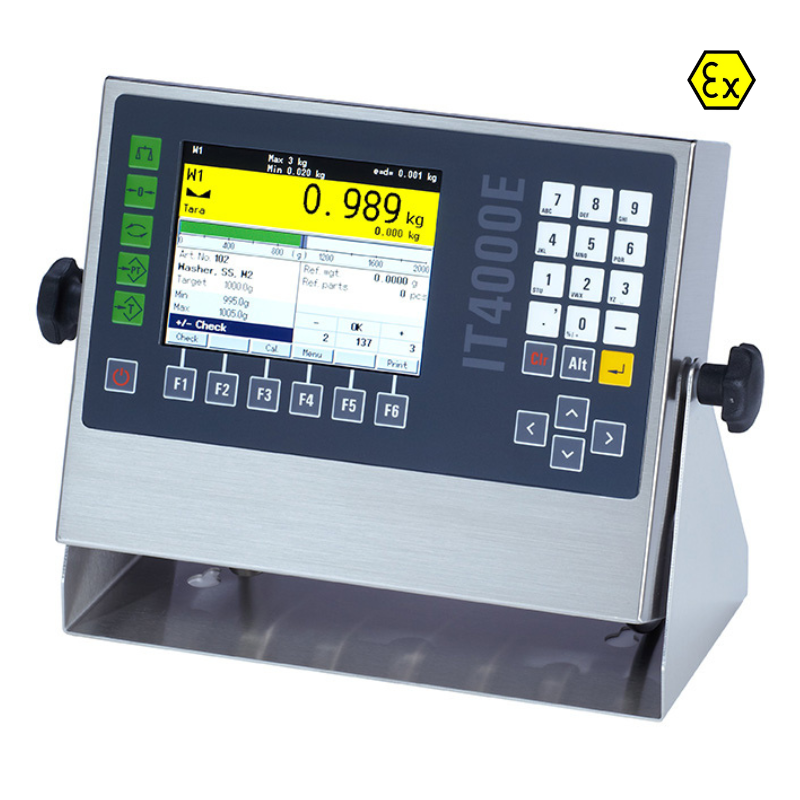

SysTec IT4000 Ex2/22

ATEX indicator in stainless steel housing for use in Ex Zone 2 and Zone 22.

Configurable standard software:

BASIC/COUNT – weighing and data capturing / parts counting with configurable print format
CONTROL/ONLINE – setpoint control / ONLINE interface
DOS – NAWI filling controller
TRUCK/ONLINE – Truck weighing / ONLINE interface

Options:

1x ADM (analog scale)
1x IDN / DWB (digital scale interface)
2x SIM (serial interface modules RS232, RS485 or 20mA CL (passive)
2x PIM (modules with 2 digital inputs and 2 digital outputs (PIM) or analog output (DAU)
Ethernet network 10/100 Mbits RJ45
USB 2.0 host interface, internal USB stick

ATEX approval:
- II 3G Ex e ic IIC T4 Gc (gas)
- II 3D Ex ic tc IIIC T135°C Dc (dust)
Robust: Compact stainless steel housing protected to IP65, for desk-top, wall-mount and column-mount installation or as panel-mount version, suitable for harsh environments, all cable connections through sealed cable glands.
Hazardous area: For installation in hazardous area.
Display: 5.7″ TFT color display (320 x 240 Pixel), large weight display and 8 display lines with 44 characters each, numeric keyboard with multiple assignment for alphanumeric entries, softkeys
Internal W&M Approved data archive for 120.000 records
266 Mhz 32-bit ARM processor, Linux real-time multitasking operating system with integrated webserver, 0.5 MB data memory with battery backup

IT4000E Standard Version:

Weighing Application: Panatronik

Power Supply	110-240 VAC, 12-24 VDC
Installation	Wall mount, Panel Mount

SysTec IT4000 Ex2/22
