SysTec IT6000E LOSS-IN-WEIGHT, Controller For Differential Loss-In-Weight Scale

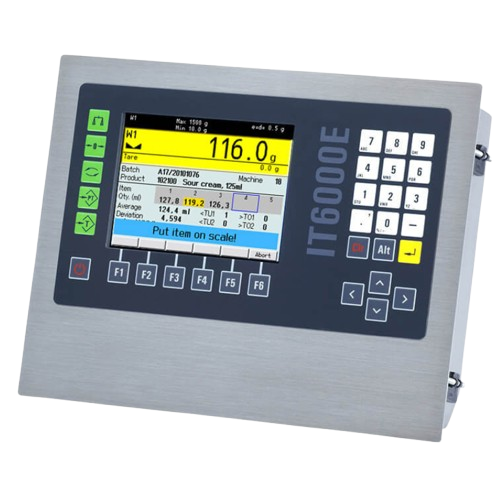

- The weighing terminal in a stainless steel housing complies with ingress protection IP69K and is available as a wall-mount/desk-top unit or in a panel-mount version for installation in the door of a control cabinet.

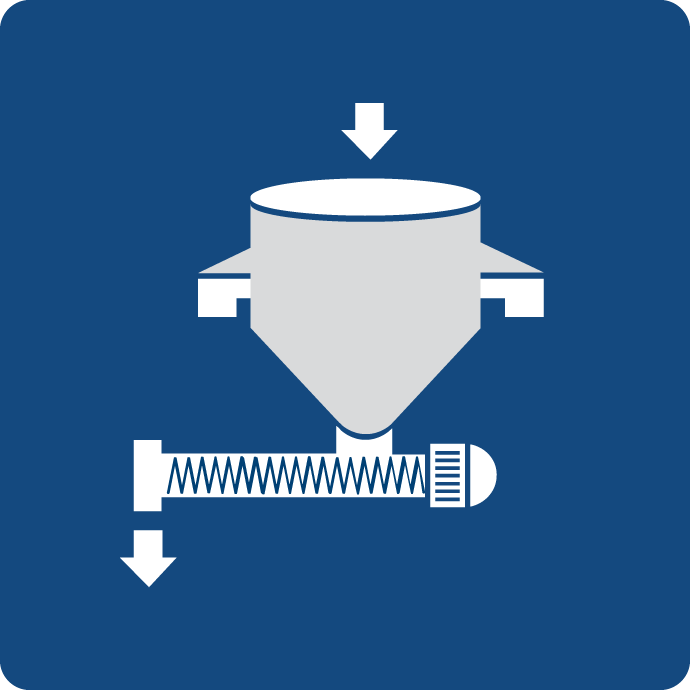

- The raw material is discharged at constant flow rate from the weigh hopper via screw, vibratory or rotary feeder. This weighing terminal controls the feeding device to adjust the actual feed rate to the preset target
- The automatic refilling of the weigh hopper is controlled via selectable setpoints and takes place without interrupting the feeding process
- Precise batching as result of
- Precise feed rate monitoring through high resolution of weight and millisecond time base
- Fast filters, self-adjusting to process
- PID controller with freely adjustable tuning constants
- Direct control of feeding device via analog output or serial RS485 / RS232 interface to connect a frequency inverter
- The most important features are:
- Raw material file for 15 products to store the material-related batching parameters
- Selection of product via display/keyboard or external inputs
- Gravimetric or volumetric mode selectable via keyboard or external input, also during running operation
- Resolution of feed rate display configurable from 0.1 kg/h (0.1 lbs/h) to 1 t/h for batch sizes from some 10 kg/h to 1,000 t/h and more.
- Other features include:
- Options for dynamic adaptation of target feed rate via keyboard or analog input
- Powerful PID controller for tracking the actual flow with reference to target
- Controller parameters can be adjusted during running operation
- Clear operator prompting with display of total quantity, current feed rate, target and chosen product
- Grafic display of relevant process status on color screen
Other IT6000E Industrial Weighing Applications:
BASIC, BATCH, BELT, BIGBAG, BULK, CHECK, CONTROL/ONLINE, FILL, SQC, TRUCK
